5-800KN Single Drum Electric Mooring Winch with Warping Head Ship Deck Equipment

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Safety Pull Capacity : 5-800KN

Speed : 4-20m/min

Warping Speed(m/min) : 9-18m/Min

Drum Capacity : 40 to 250m

Motor Power : Motor Power

Rope Dia : 11 – 90 (mm)

Control position : Remote and local control

Optional : Load measuring, rope speed and length measuring device

Power Supply : AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH

Material : Stainless Steel (Polished), Mild Steel

Surface treatment : sandblasting to S2.5 + 3 layers of epoxy paint

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc

Contact Now

5-800KN Single Drum Electric Mooring Winch with Warping Head

Description:

Our single drum electric mooring winch with warping head safe pull load range is from 5-800KN which is 0.5t to 80t. Electric ship mooring winch incorporates essential components including an electric motor, gearbox, drum, warping end, electric switchboard, and control console, all integrated into a robust framework. Electric driven marine mooring winch is designed for assist ship crew mooring operation for ship safety at port. It can be remote operation in wheelhouse and can optionally include spooling tool, auto tension system, force gauge and rope length gauge meters. The winch is applicable either PP rope and steel wire rope,The drum can be either whole part or split into two parts, one for storage the rope and one for roll the rope

Key Technical Specifications: The winch drum diameter is 16-18 times the rope diameter, which allows the rope to be wound neatly on the drum, reducing rope stress and extending the rope's lifespan. Additionally, all outdoor electrical components are rated IP56 for protection.

Product Features:

  1. Remote Control Capability: Enables safe and convenient operation from a distance.
  2. Versatile Drum and Warping Configurations: Options for single or double drums and warping ends to suit specific needs.
  3. Wide Range of Motor Power: From 1.2 kW to 100 kW, offering flexibility for various vessel sizes and applications.
  4. Advanced Control Options: Supports both remote and local control positions for operational convenience.
  5. Optional Monitoring Devices: Provides the ability to integrate load measuring, rope speed, and length measuring devices for enhanced safety and efficiency.
  6. High-Quality Construction: Constructed from durable materials with surface treatments to resist corrosion and ensure longevity.
  7. Compliance and Certification: Holds certifications from reputable classification societies, ensuring adherence to industry standards.
  8. The 5-800KN Single Drum Electric Mooring Winch with Warping Head is a versatile and reliable solution for marine mooring operations, offering customizable configurations and advanced features to meet diverse requirements.

Main Techinical Specifications:

  1. Safety Pull Capacity: 5-800kn
  2. Speed: 4-12m/Min
  3. Warping Speed: 9-18m/Min
  4. Drum Capacity: 40 To 250m
  5. Drum Configuration: Single Drum, Double Drum Available
  6. Warping End Configuration: Single Warping head Or Double Warping Head
  7. Motor Power: 1.2 To 100 Kw
  8. Rope Diameter: 11 – 90 Mm, PP or Steel Wire Rope
  9. Control Options: Remote And Local Control
  10. Optional Features: Load Measuring, Rope Speed, And Length Measuring Device
  11. Power Supply: Ac380v, 50hz 3ph; Ac415v, 50hz 3ph; Ac440, 60hz 3ph
  12. Material: Stainless Steel (Polished), Mild Steel
  13. Surface Treatment: Sandblasting To S2.5 + 3 Layers Epoxy Paint
  14. Certifications: BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, CCS, NK, and more

Main Technical Parameters:

Rated Pull Rated Speed Drum Capacity Motor Power
Ton kN m/min mm*m kW
0.5 5 ≥12 φ8*100 3/1.2
1 10 ≥12 φ10*150 4.3/1.7
2 20 ≥12 φ15*150 8.5/3.5
3 30 ≥12 φ17*150 11/11/7.5
4 40 ≥15 φ8*150 16/16/11
5 50 ≥15 φ20.5*180 22/22/16
7.5 75 ≥15 φ26*200 30/30/22
8 80 ≥15 φ26*200 30/30/22
10 100 ≥15 φ30*200 45/45/30
15 150 ≥15 φ30*200 45/45/30
16 160 ≥15 φ32*250 60/60/45
20 200 ≥9.6 φ40*250 45/45/30
25 250 ≥9.6 φ44*250 60/60/45
31.5 315 ≥7.8 φ52*250 60/60/45
40 400 ≥7.8 φ56*250 85/85/64
45 450 ≥6 φ56*250 85/85/64
50 500 ≥7.8 φ58*250 85/85/64

5-800KN Single Drum Electric Mooring Winch with Warping Head Ship Deck Equipment

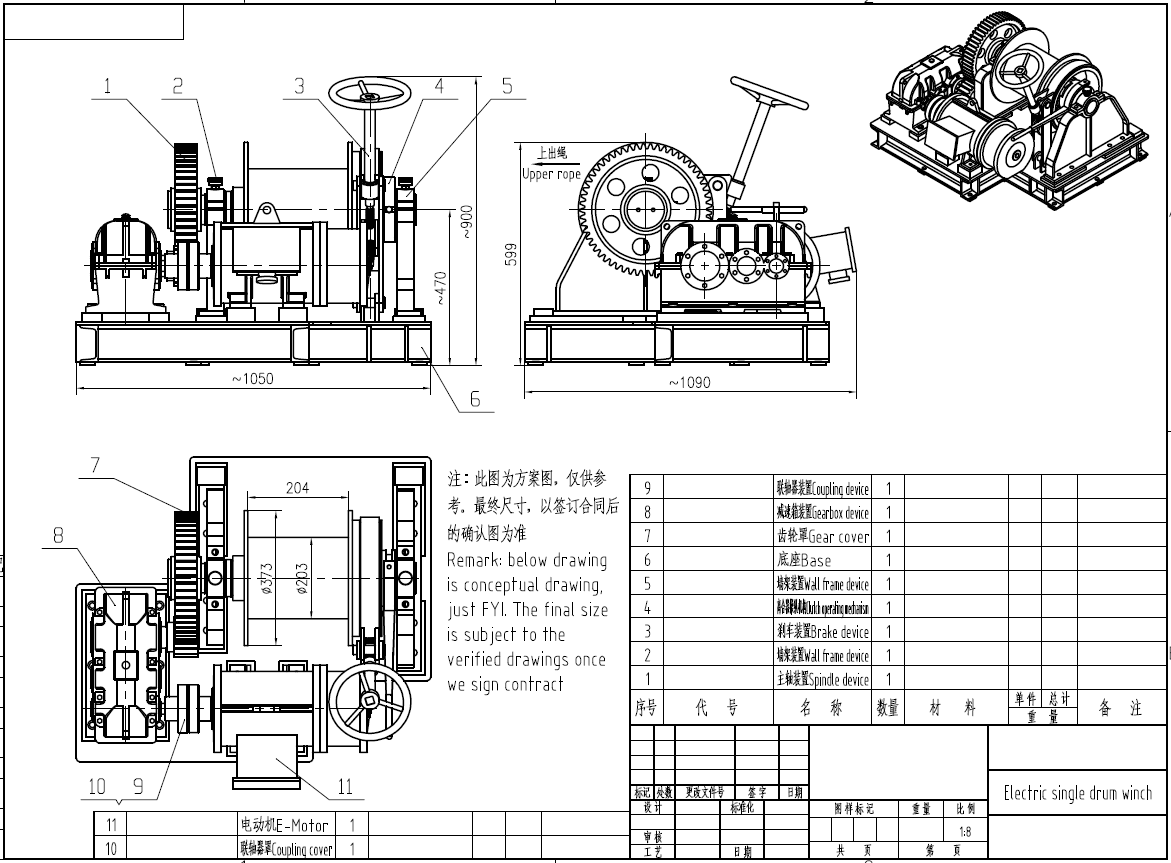

Drawing of Single Drum Single Warping End Electric Mooring Winch Ship Deck Equipment

5-800KN Single Drum Electric Mooring Winch with Warping Head Ship Deck Equipment
